Bendigo again

Today we begun the turnout construction.

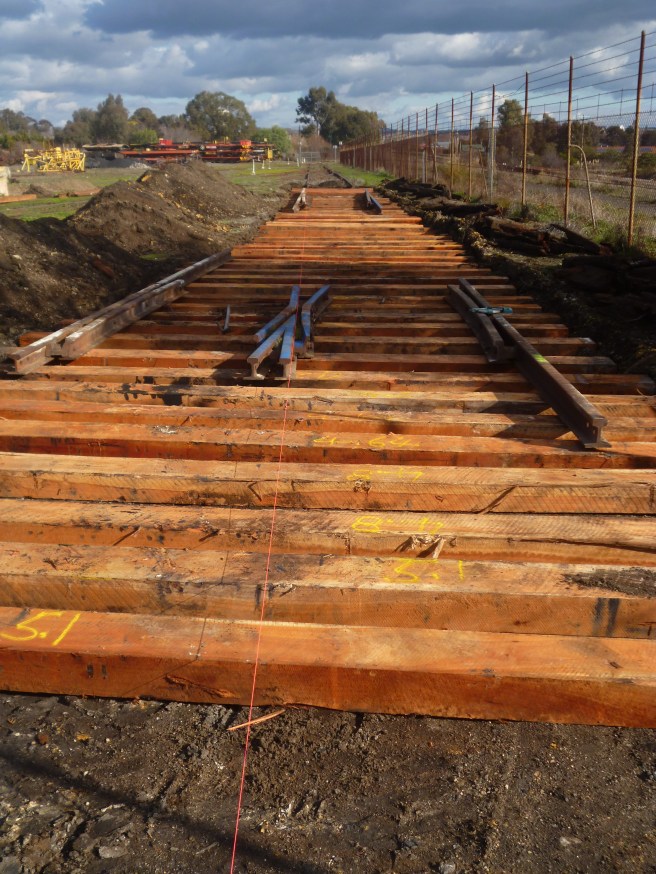

First by sorting and precisely placing the timber in accordance with the old VR diagram.

After which the turnout components were prepared for installation.

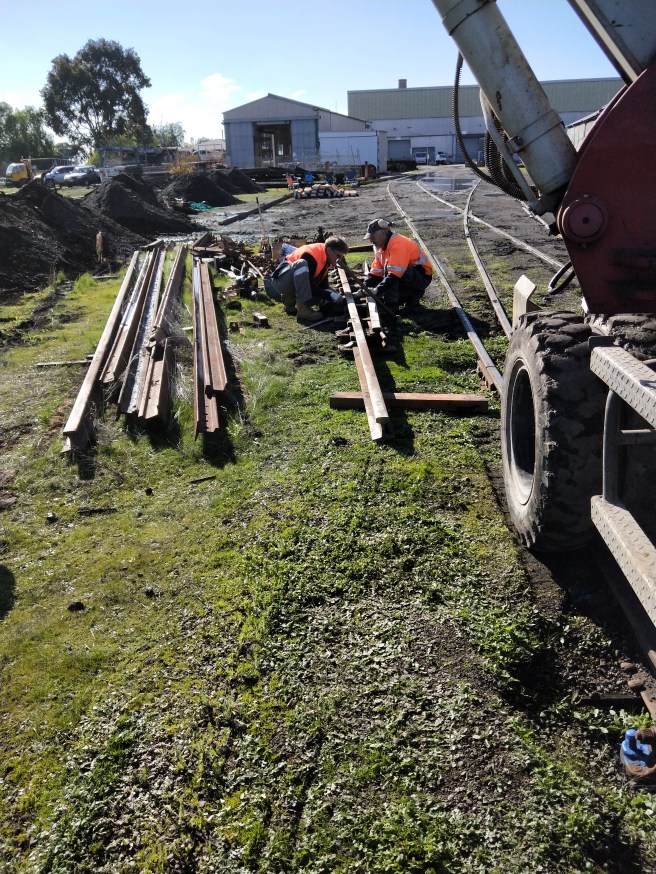

Tony and Wally replacing damaged point chairs.

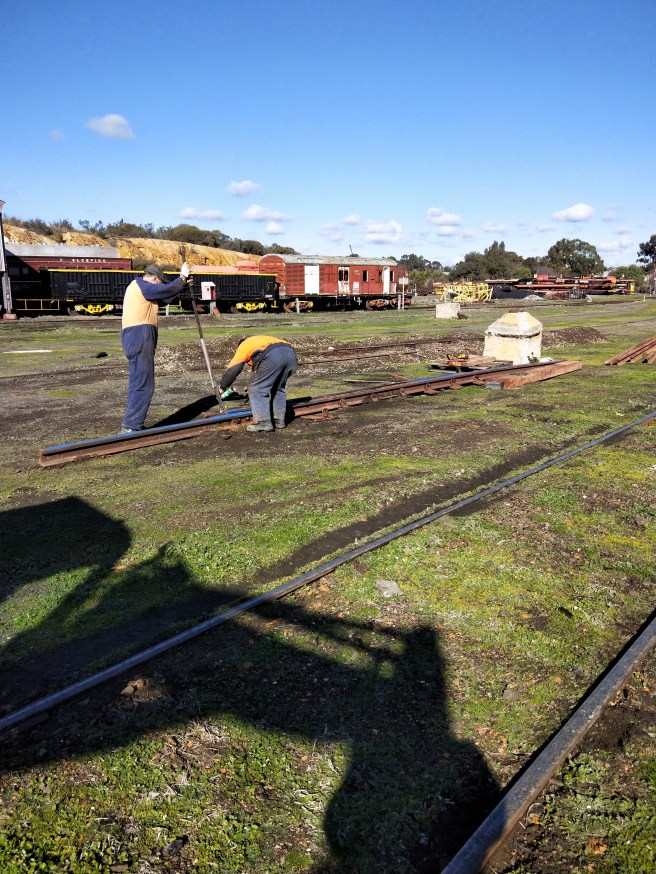

While Rolf and Ian attend to freeing up seized bolts on the other side.

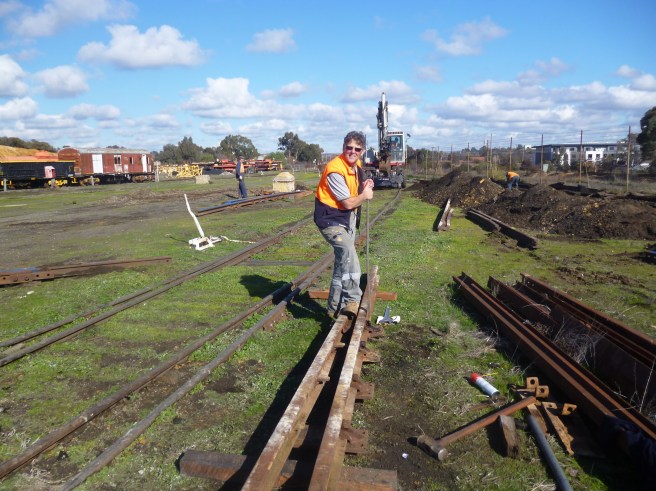

The old spanner is often required in turnouts, as there is not enough space for the rattle guns. Here Tony tightens the bolts for the point chairs.

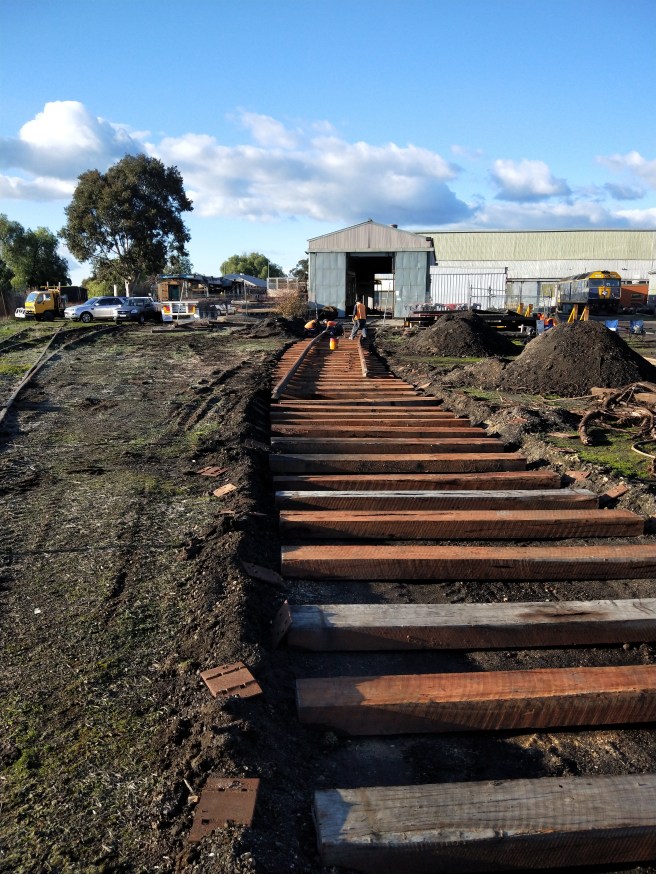

Last off was to place those bits and pieces onto the point timbers. It was certainly a good moment when the timbers lined up almost perfectly with the turnout itself. The string line here is the reference line for which everything is placed.

Here we are using two tapes to triangulate the distance of the two blade ends (toes), to ensure they are completely square.

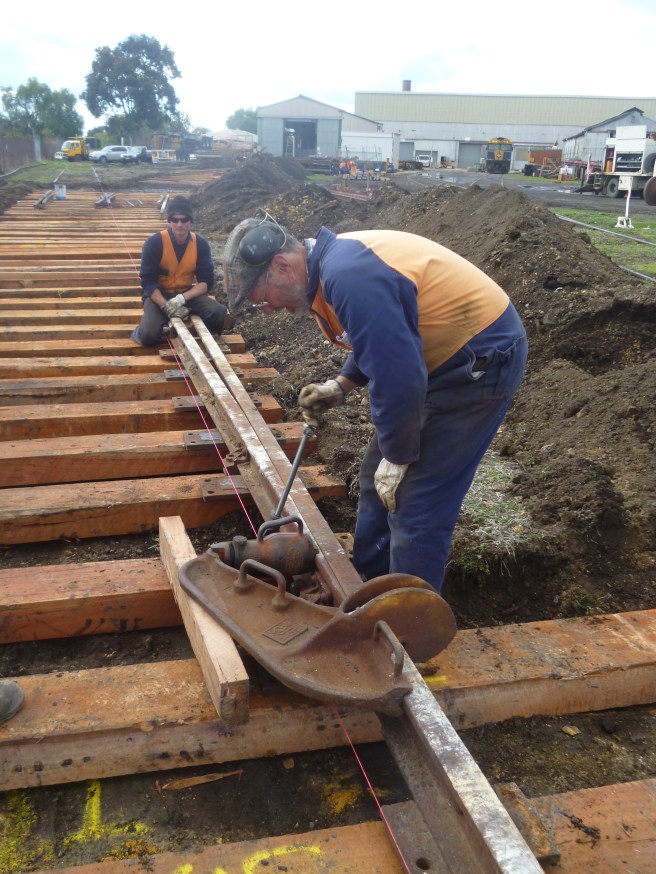

Unfortunately the turnout bits available to us had been slightly bent at some point in their life, so the ‘BUDA’ or rail bender was needed to correct the bends. Here Will is closely monitoring the bending while Rolf bends the rail using the jack. This takes a bit of effort and judgement to get the angles right, but you’ll be pleased to know we ended up with perfect results.

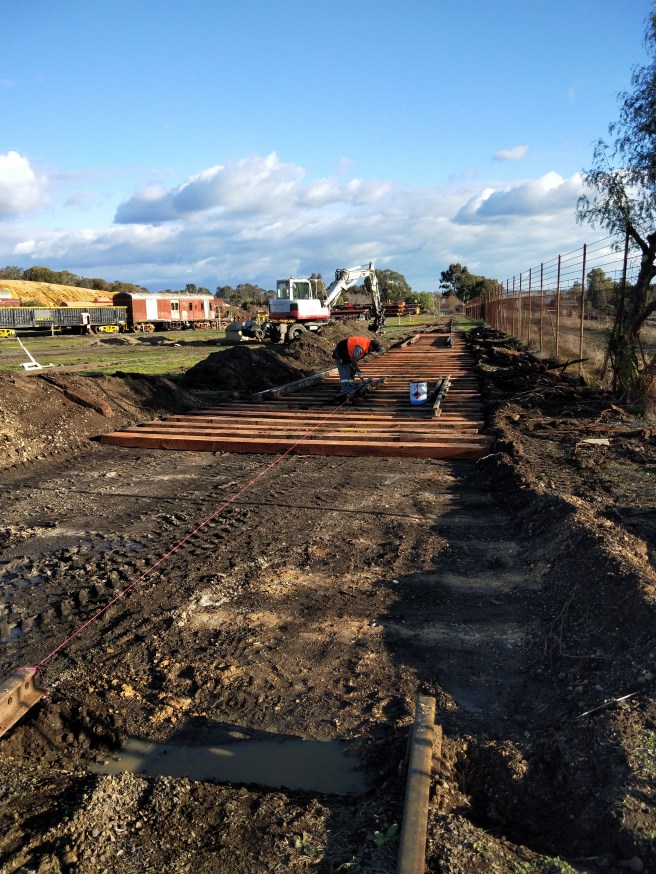

The string line showing the location of the V crossing in relation to the other components. Getting this correct is the most critical part in the turnout construction and much fine tuning and double checking was done to reach this point.

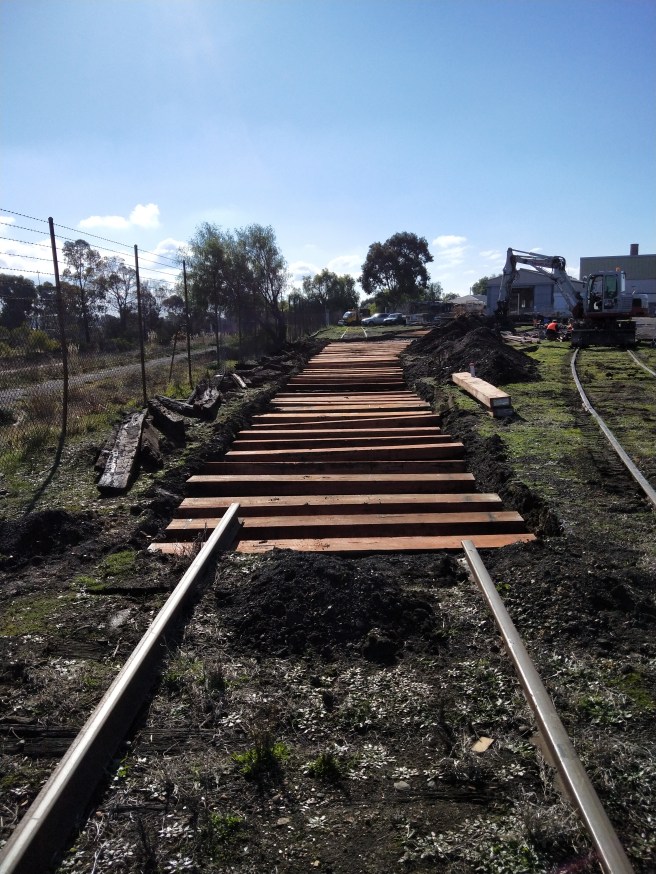

We didn’t just tackle the turnout today, we also bolted up some rails for the next section.

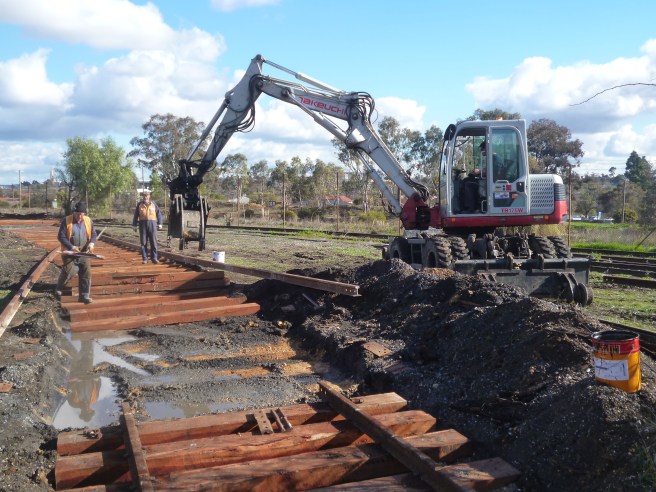

As we were joining rails of different heights, we found we didn’t have our levels exactly correct, but that was quickly remedied by removing some sleepers and digging out.

After correcting the heights the bolting up occurred. Once the turnout is in, we’ll be putting in the missing rail and connecting it up.

After a very successful day, the job is really starting to take shape.

Well be back there tomorrow and all of next week if you’re interesting in coming along and helping out.
